How to design interfaces with Grok Build in OpenDesign: an event poster as the reference, a plan before any change, one landing-page task from brief to reviewed file, and the limits to know before you start.

Download OpenDesign Go to setup

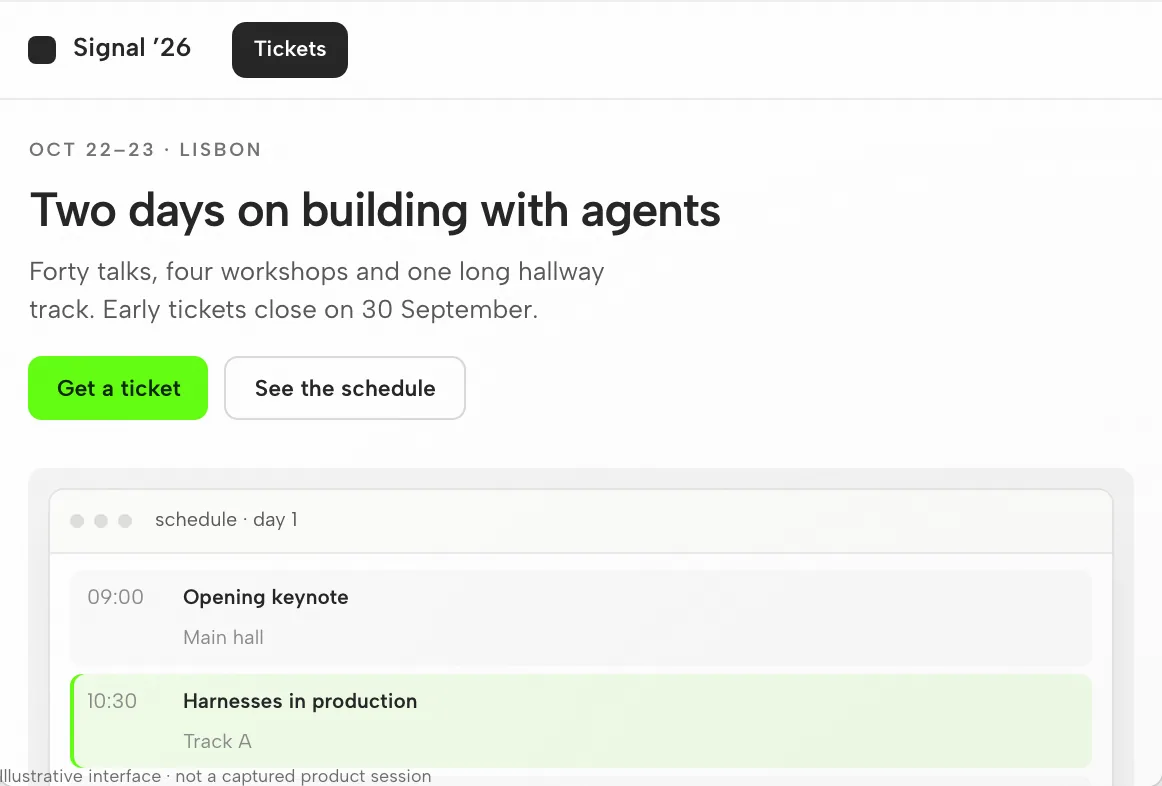

Illustrative interface · not a captured product session

THREE WAYS INTO THIS GROK GUIDE

Choose Where to Start With Grok

THIS GUIDE · UI DESIGN

Build a Product Interface With Grok

This guide: brief, references, design rules and a reviewed HTML result.

Read this guide SETUP

Set Up Grok From Zero

Here is the full path from a clean machine to a Grok Build that can build and verify UI.

Go to setup COMPARISON

Compare Grok With Other Agents

How Grok differs from Codex, Claude Code, Cursor for design work, and when to choose another workflow.

See the comparison

On This Page Example

Example
Fit
Compatibility
Setup
Workflow
Resources
Limitations
FAQ

One Complete Grok Design Task

A Grok Design Task, From Brief to Interface

A single task, shown end to end: the brief and constraints you hand over, the artifact that comes back, and the checks you still run before it is done. The interface below is an illustrative example built for this page, not a recorded Grok run.

1Design Brief and Constraints

Brief

Design the landing page for a two-day developer conference from the attached poster image: date and venue, a schedule teaser, speakers and a ticket call to action. Desktop and phone.

Design systemOpenDesign paper canvas: Albert Sans, one green accent
Breakpoints1440px desktop and 390px mobile, no horizontal scroll
InteractionsTicket CTA, schedule day switch, speaker cards
OutputOne self-contained HTML file with stable data-od-id hooks

2Division of Work: You, Grok and OpenDesign

You
Write the brief, select the design system and define the acceptance criteria.
Grok
Plans the layout, writes the HTML, CSS and JavaScript and revises it on request.
OpenDesign
Provides the design system and skill, renders the preview and stores every version as a file in the project.
Review
Visual hierarchy, spacing on the 8px grid, both breakpoints and every interaction are checked before handoff.

3Grok Artifact: The Event Page at 1440px and 390px

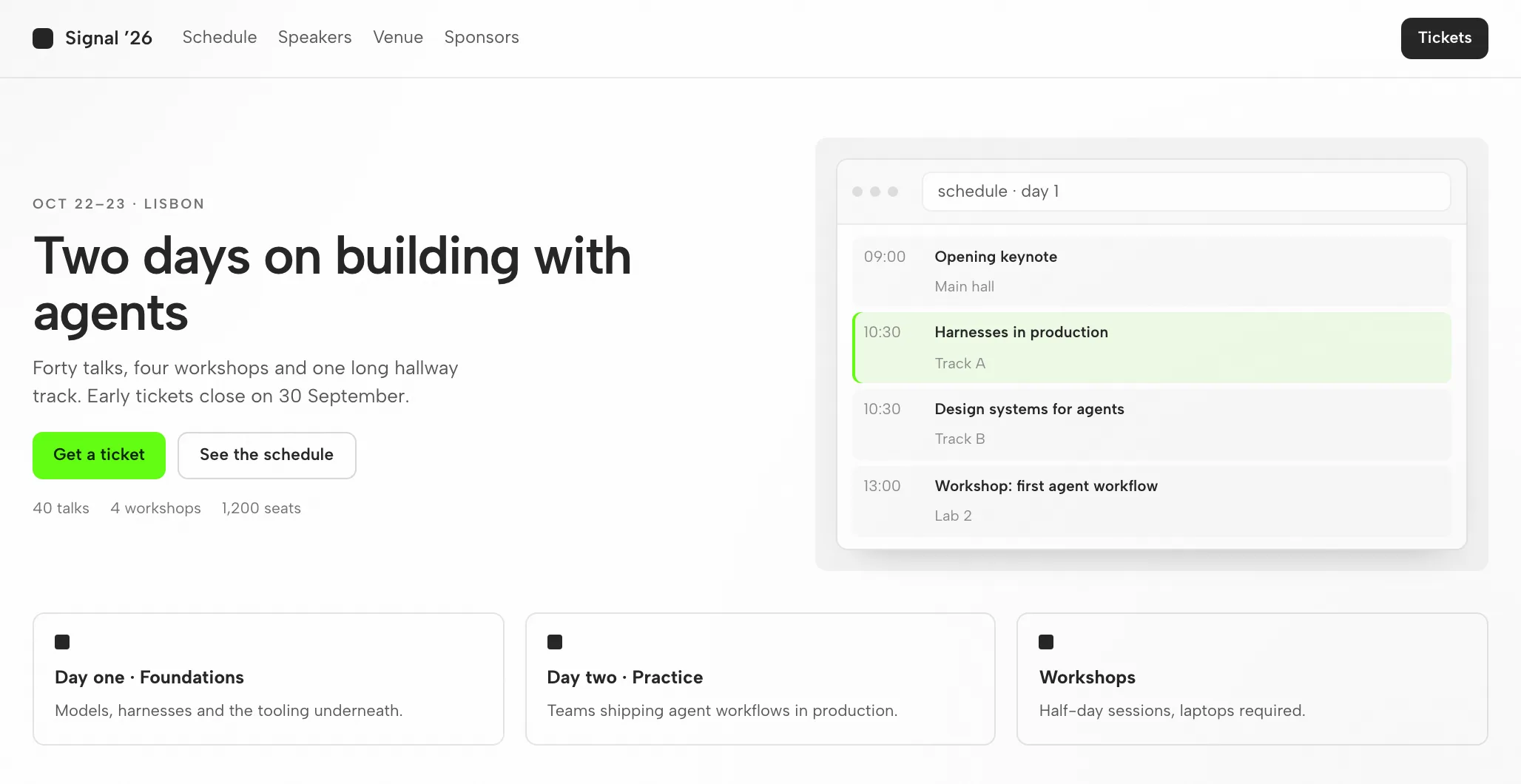

Grok Artifact: The Event Page at 1440px and 390px — Desktop — Illustrative example

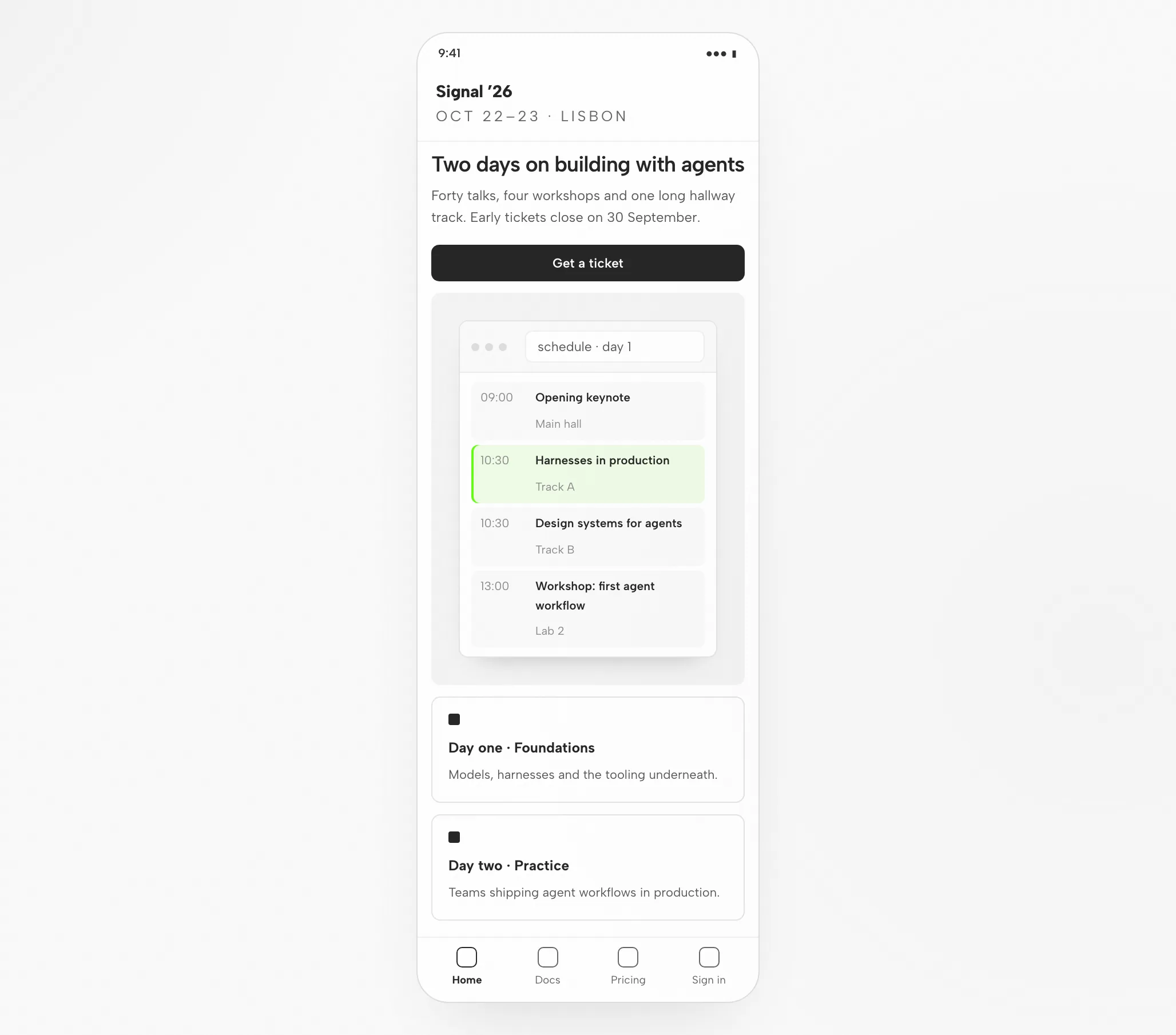

Grok Artifact: The Event Page at 1440px and 390px — Mobile — Illustrative example

4Review Before Handoff

Layout

Grid and Spacing

Hero, tracks and proof on the 8px grid; the poster art is cropped, not squeezed.

Hierarchy

Visual Hierarchy

Date and title first, then the ticket button; the accent marks that button only.

Responsive

Mobile Layout

Title, date and ticket button above the art; tracks stack in order.

Interaction

Interaction Checks

Open tickets, switch schedule days, follow one speaker card.

Fit

When Grok Fits the Task, and When It Does Not

Grok Fits When

Image-aware screenshot → UI. Grok models accept image input, turning a reference image into responsive markup and checking the result against it.
Plan mode before changes. A structured plan you approve before files change, so design intent is reviewed up front instead of after the diff.
AGENTS.md + MCP. Context files carry your conventions; the Figma MCP server brings real design context into code.
Sign in with your account. Authenticate through SuperGrok or X Premium+ with OAuth, or bring an xAI API key (BYOK) for headless use.

Choose Another Workflow When

You need editable vector files. The artifact is HTML, not an editable design document. Check a separate vector workflow for your required asset format.
You have no reference and no constraints. Without a design system or examples the output tends toward a generic look; write the brief first.
You do not have the credential this agent needs. Required: xAI SuperGrok OAuth (`grok login`). OpenDesign does not provide or proxy credentials.
Your team works in Hermes or Codex. Those agents have their own pages; the workspace is the same, the setup differs. See related agents.

Compatibility

Grok Requirements Before You Start

This guide covers Grok as connected through the OpenDesign desktop app. Published references checked on 6 September 2026.

Tool ScopeGrok, by xAI

Grok Build is xAI's terminal coding agent, shipped as Grok Build. It reads your codebase, edits files, runs shell commands, and plans multi-step engineering work before it acts. This page is about designing interfaces with Grok through OpenDesign, not about Grok’s own interface. OpenDesign’s setup notes list the available agents.

Accounts and AuthenticationxAI SuperGrok OAuth (`grok login`)

xAI SuperGrok OAuth (`grok login`). Authenticate with your SuperGrok account or an xAI API key (BYOK) — credentials stay on your machine. This page does not promise a quota or price.

System and VersionsDesktop app or source

Check the download page for desktop builds. The Node.js and pnpm requirements in the source quickstart apply to running from source, not to installing a desktop package. Minimum compatible Grok version: not verified here.

Connection CheckThe success signal

Follow the connection instructions shown by your installed version, then run a small task. Confirm that Grok handled it and that the artifact opens. A download alone does not establish a working connection.

Start with the desktop app

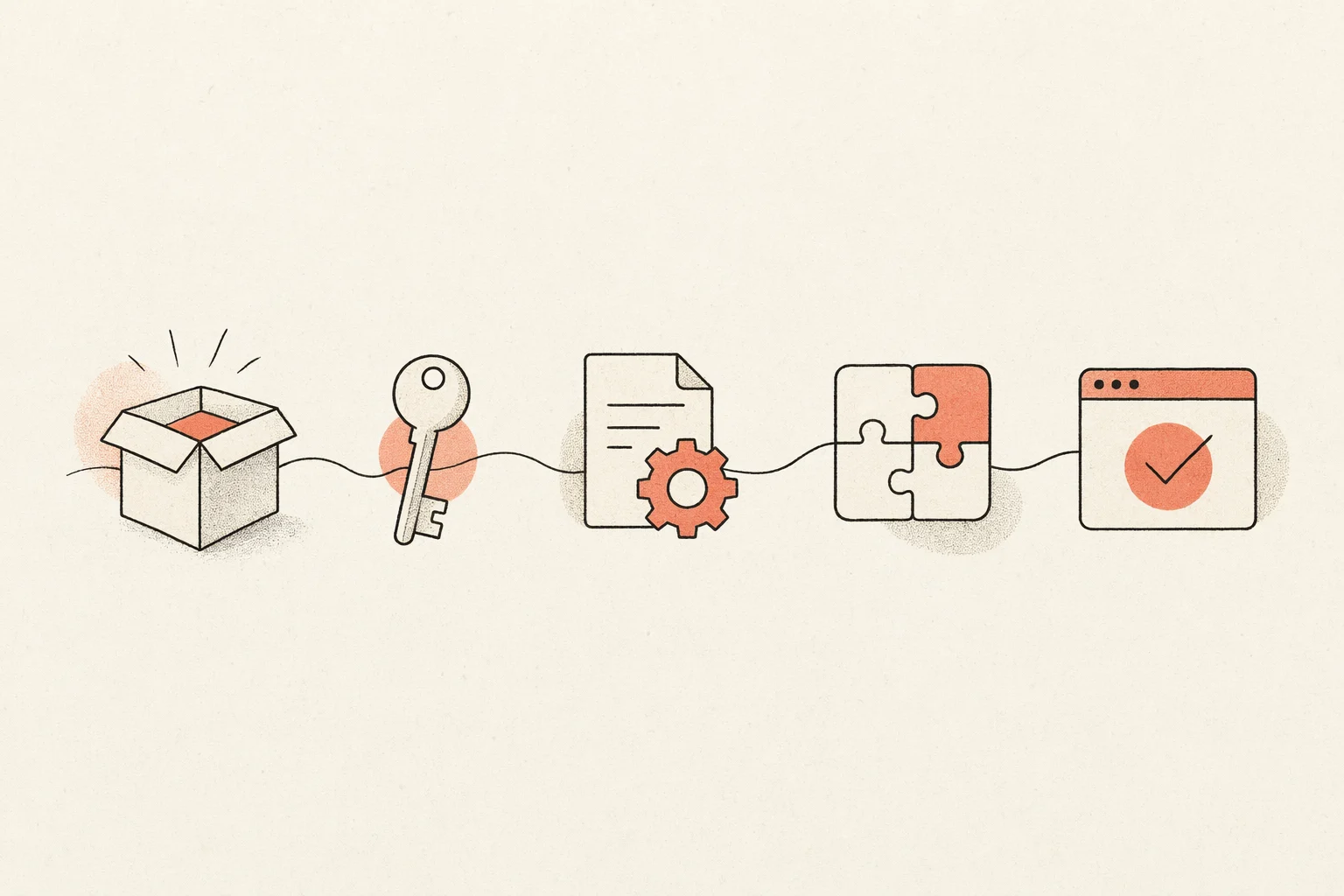

Grok Setup in Three Steps

Download first, complete the Grok setup for your installed version, then check a small result. You do not need to build OpenDesign from source to follow this path.

1

Download the OpenDesign Desktop App

Choose the package for your computer, install it and open the app.
Download OpenDesign

CHECKPOINT
The desktop app opens. Already installed? Move to the next step; there is no need to download again.
2
Prepare Your Grok Connection
Follow the Grok instructions in your installed version. Authenticate with your SuperGrok account or an xAI API key (BYOK) — credentials stay on your machine.
xAI models documentation
# 1. Install Grok Build (Grok Build) on macOS/Linux curl -fsSL https://x.ai/cli/install.sh | bash # 2. Start it in your project and authenticate on first run cd your-project grok login # opens your browser; sign in with SuperGrok / X Premium+ # or, for headless / CI use, set an xAI API key: # export XAI_API_KEY=xai-...
From the Grok setup notes in the published guide; check the vendor documentation for the current command.
CHECKPOINT
Confirm the intended agent and account. If it is unavailable, check compatibility before trying a larger task.
3

Run One Small Grok Task

Use a small brief so you can judge the whole loop, including one revision.

Starter brief

Build a settings screen with a profile form and a save confirmation. Use my design rules. Check it at desktop and mobile widths.

CHECKPOINT
Open the result, test the save state and request one specific change. A generated file is the beginning of review, not the end.

To run OpenDesign from source, follow the technical quickstart instead.

The Grok design workflow

The Grok Design Workflow in Five Steps

The same event page task, followed from brief to verified file. Each step lists what you provide, what Grok does, what OpenDesign contributes and what you check.

1
Design Brief

Plain language, three to six lines. Name the audience, the job of the screen and the platforms.
- YouWrite the brief; attach a reference screenshot if you have one.
- GrokReads the brief and the project’s instruction file; asks when something is ambiguous.
- OpenDesignProvides the project, the prompt surface and the skill for the artifact type.
- CheckConfirm the brief states the acceptance criteria. Adding them now is cheaper than after generation.
New project · PromptGrok

You
Make the conference landing page from this poster: date and venue, schedule teaser, speakers, ticket CTA. Desktop and phone.
Grok
Plan first: hero, tracks, speakers, venue, sponsors. The poster’s red should become our accent, not a second colour. Proceed?
2

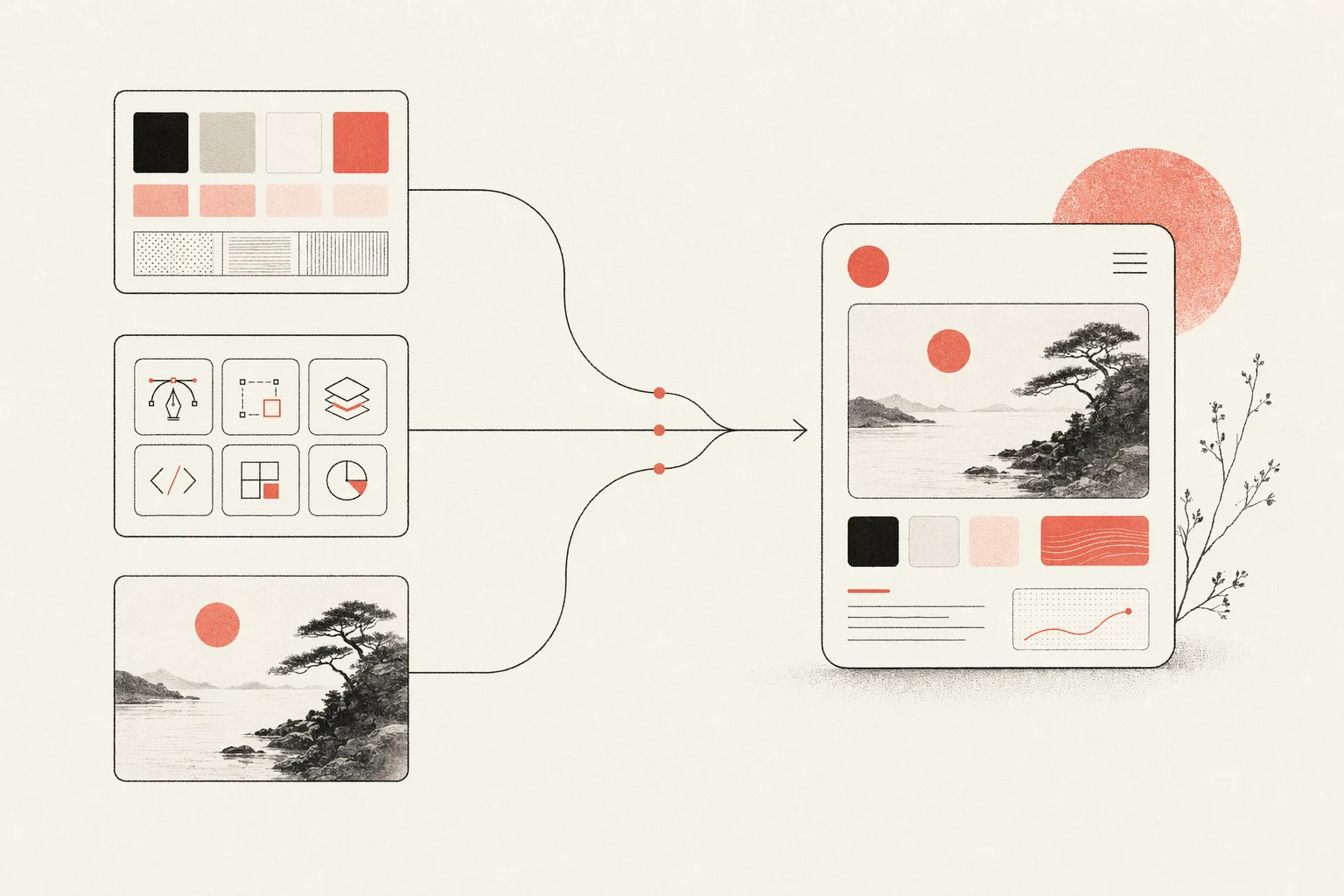

Design Constraints

A design system and a few hard rules. This is what separates on-brand output from a generic look.
- YouPick a design system; state breakpoints and any must-use components.
- GrokLoads the DESIGN.md tokens and posture rules into context before writing a line.
- OpenDesignShips the design-system library and binds the chosen one into the skill template.
- CheckThe tokens match your brand. One accent, the right fonts, the right radius.
DESIGN.md · OpenDesignbound

background #fafafa foreground #262626 border #d9d9d9 accent #63fe13 display Albert Sans 800 radius 8px · pills 999px
3
Generate the Interface

Grok writes a self-contained HTML file: layout, styles, interactions and stable hooks.
- YouWait, or answer a clarifying question. Nothing to configure.
- GrokPlans the sections, writes the HTML, CSS and JavaScript, runs the file and fixes what fails.
- OpenDesignSaves the artifact into the project folder and indexes it for preview.
- CheckNothing yet. Judge the file after it is rendered, not from the source.
Project files3 files
- event-landing.htmlnew
- AGENTS.mdbound
- DESIGN.mdread
4
Preview

The file renders inside OpenDesign at the widths you asked for. This is where the design is judged.
- YouSwitch widths, click through the interactions, leave comments on elements.
- GrokReads your comments on the preview and prepares the next revision.
- OpenDesignRenders the preview, exposes data-od-id targets for comments and edits.
- CheckHierarchy, contrast, overflow at 390px, focus states, and whether the accent is used sparingly.
Preview · 390pxComment mode

Comment on · hero
Date and city belong in the eyebrow, not in the headline.
Comment on · tracks
Two days as two blocks, workshops third.
5
Revise and Verify

Request changes by pointing at elements in the preview. Every revision is a new file; nothing is overwritten silently.
- YouTurn comments into requests; decide when the task is done.
- GrokApplies the changes in place and re-runs the file.
- OpenDesignKeeps versions side by side; exports an image or the HTML when you are done.
- CheckRe-check only the area that changed, then the whole page once at each breakpoint.
Verification · v23 of 4
- ✓Date in the eyebrow
- ✓Accent on the ticket button only
- ✓No horizontal scroll at 390px
- Schedule day switch — checked by you

Resources

Grok Design Resources

Design Skills

The artifact types Grok can produce in OpenDesign, one skill per type.

Browse skills Design systems

Design Systems

Brand tokens and components to bind before Grok generates anything.

Browse systems Templates

Templates

Starting points for decks, landing pages and product screens.

Browse templates

Limitations

Grok Limitations, Manual Checks and Fallbacks

ScopeThis page covers Grok as an agent connected to OpenDesign, not every Grok feature.
Usage LimitsUsage limits and cost follow the credential you use (xAI SuperGrok OAuth (`grok login`)). This page makes no claim about free quotas.
NetworkLocal project files do not mean offline inference. Review your agent’s provider settings and data policies before sharing sensitive inputs.
Output Is HTMLArtifacts are HTML files, not vector design files.
Manual ReviewAccessibility, real content, brand fit and interaction correctness are reviewed by you in the preview. Treat any self-check by the agent as a first pass.
FallbackIf the agent is unavailable or a task fails, check the installed version’s connection instructions and authentication. Preserve the error and the last working artifact before changing configuration.

FAQ

Common Questions About Grok and OpenDesign

Can Grok Build Really Do Design Work?

Yes — with an aesthetic skill, a design system, and real reference images in context, Grok Build produces production-quality, responsive UI, and its image-aware Grok models help verify output against references. Without that context it tends to default to a generic look, which is the gap OpenDesign fills.

How Do I Authenticate Grok Build?

You sign in through your browser with a SuperGrok or X Premium+ subscription (`grok login`), so there is no API key to manage. For headless or CI use you can bring an xAI API key instead. OpenDesign never proxies your credentials either way.

What Makes Grok Build Good for Design Specifically?

Two things: its plan mode lets you review the approach before any change lands, and its Grok models accept image input, so it reads reference screenshots well. Both help — but taste still comes from the design system, skill, and references you supply.

Grok Build or Claude Code for Frontend Design?

Both are strong. Claude Code is known for specific, codebase-aware design decisions; Grok Build's edge is plan-mode review and image-aware xAI models. Many teams use both — OpenDesign lets you switch agents without changing your design workflow.

How Do I Connect Grok Build to Figma?

Add the Figma MCP server to your MCP configuration. Grok can then pull real design context — components, variables, layout data — so the generated code matches the source instead of approximating it.

Start a First Design Task With Grok

Start with a small task, judge the round trip, then bring the real brief. Choose the option that matches your setup; the page does not detect it.
